Product is NOT STOCKED at fulfilment center. Minimum order quantity of 50 required. 8 week lead time. Contact sales for details.

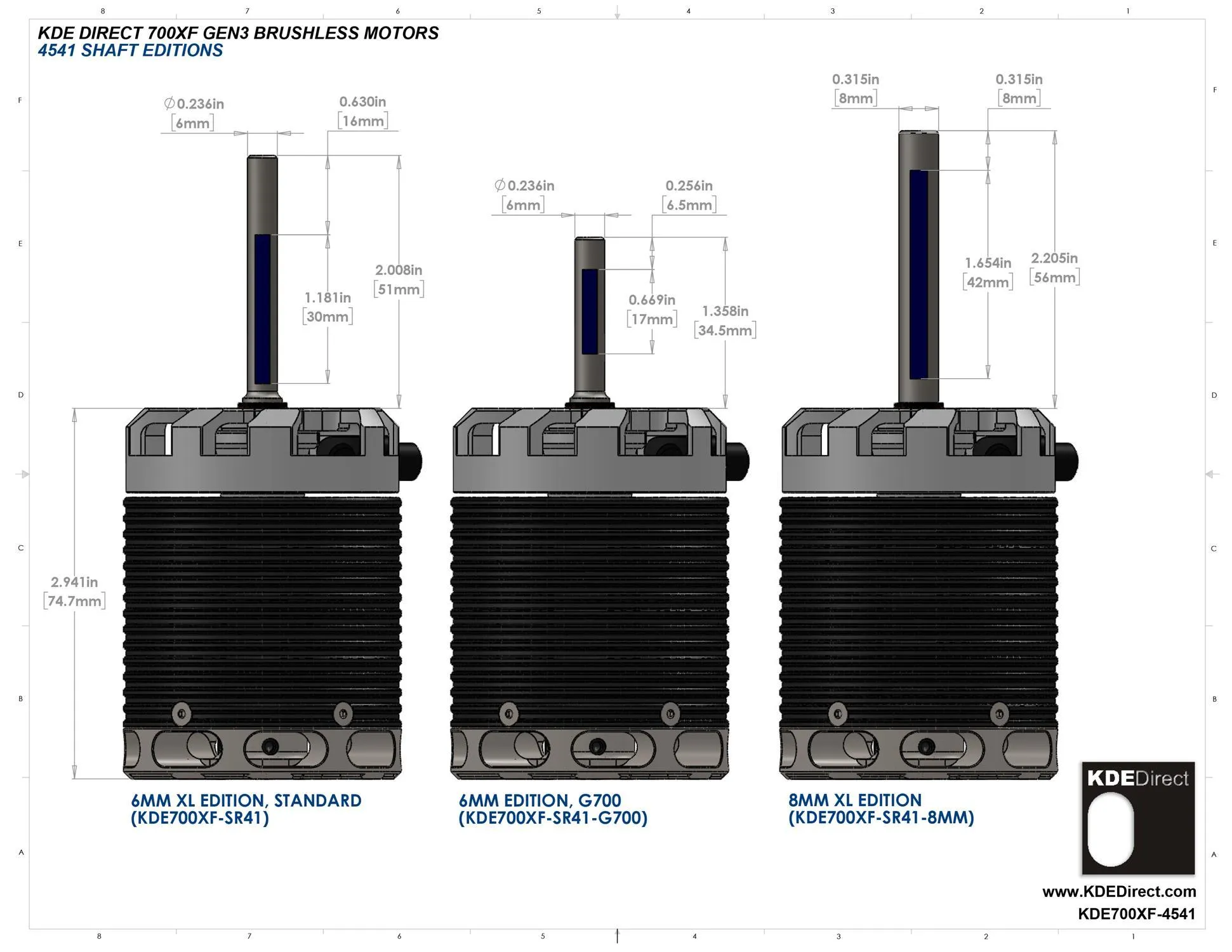

NOTE: Use the pull-down menu above to select the shaft of your choice:
- 6mm XL Edition, Standard ()
- ф6mm shaft diameter, 51mm shaft extension, 125.7mm overall length
- 6mm Edition, G700 ()
- ф6mm shaft diameter, 34.5mm shaft extension, 109.2mm overall length
- 8mm XL Edition ()
- ф8mm shaft diameter, 56mm shaft extension, 130.7mm overall length
Replacement Bearings:

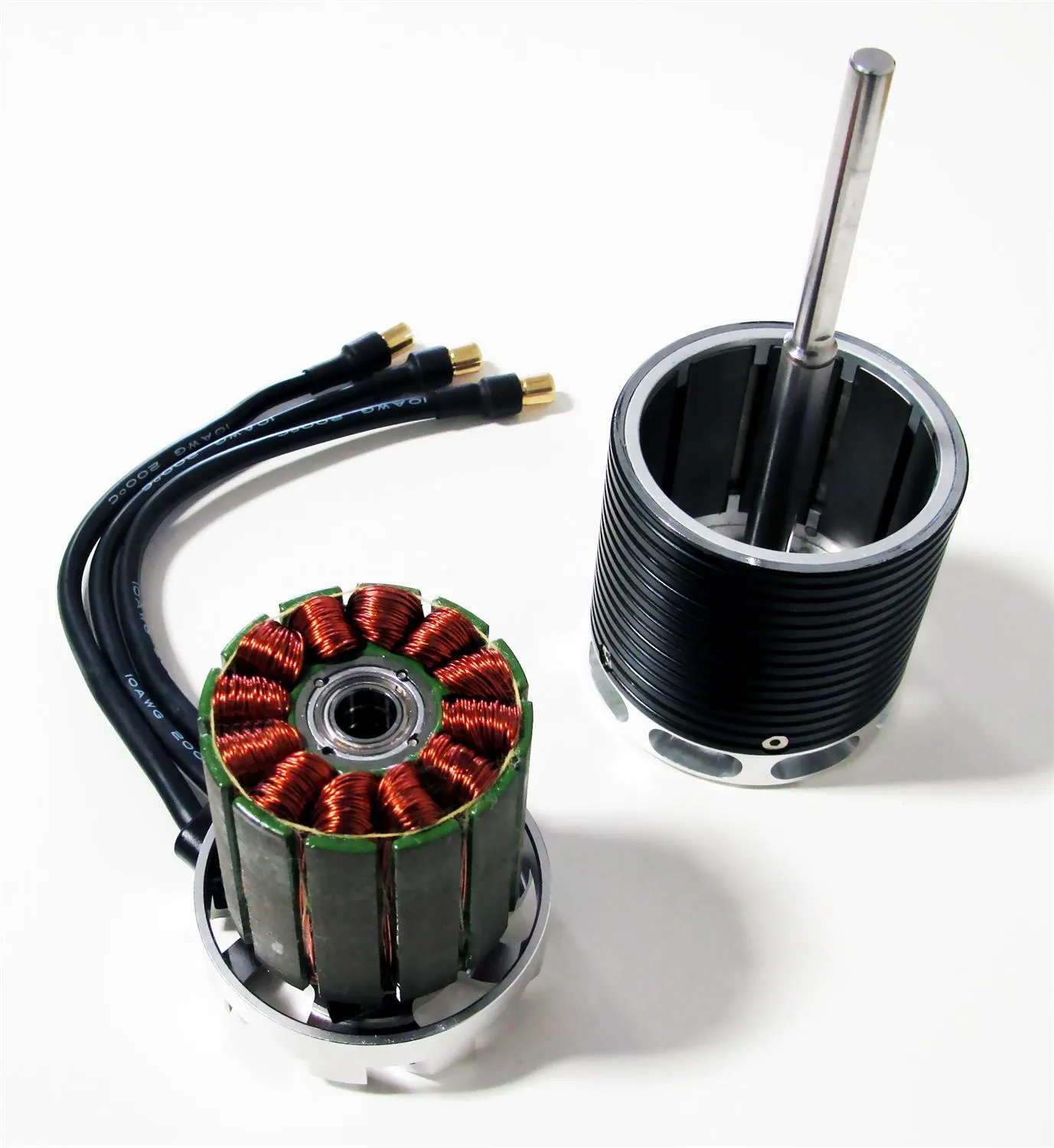

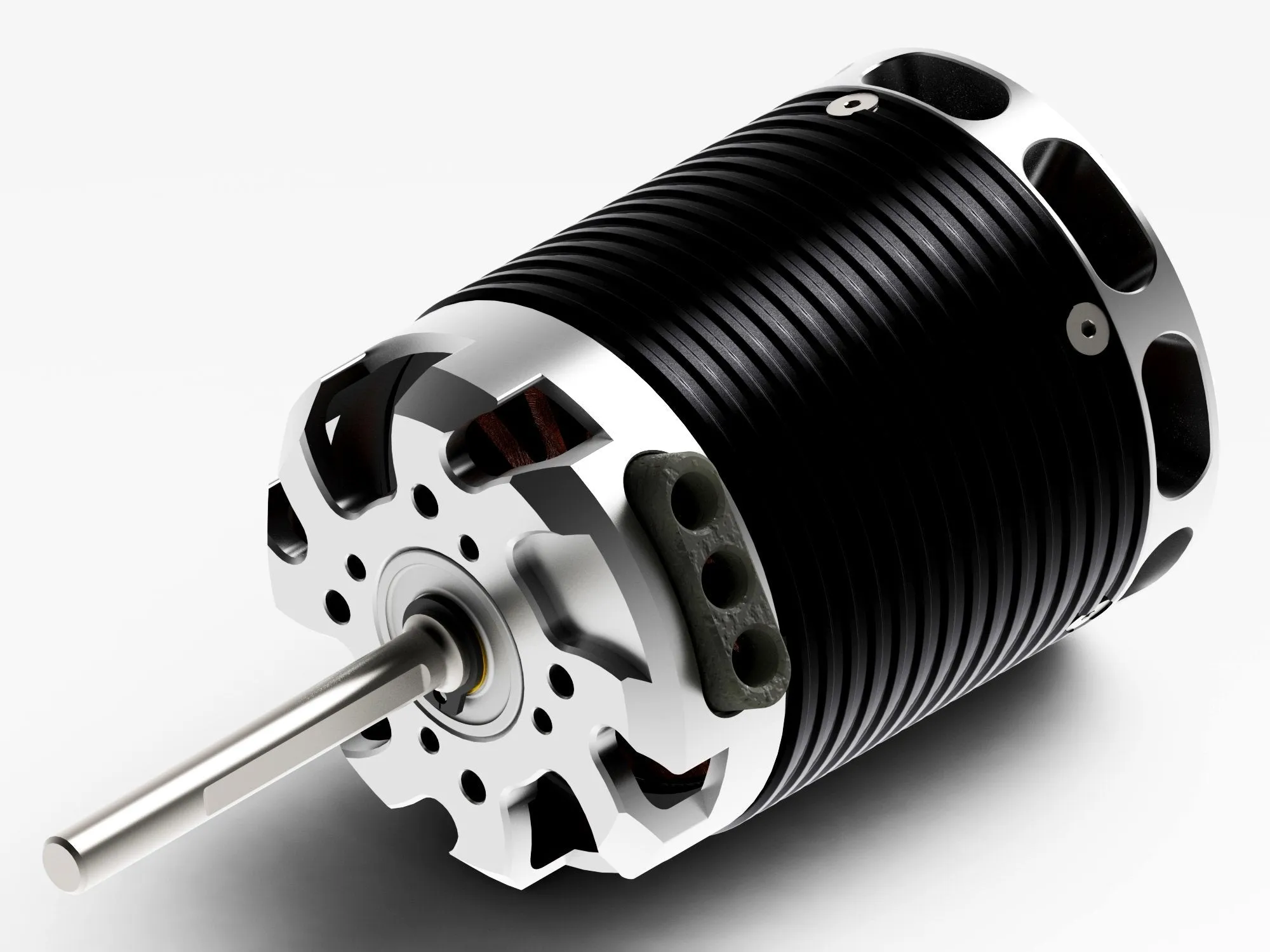

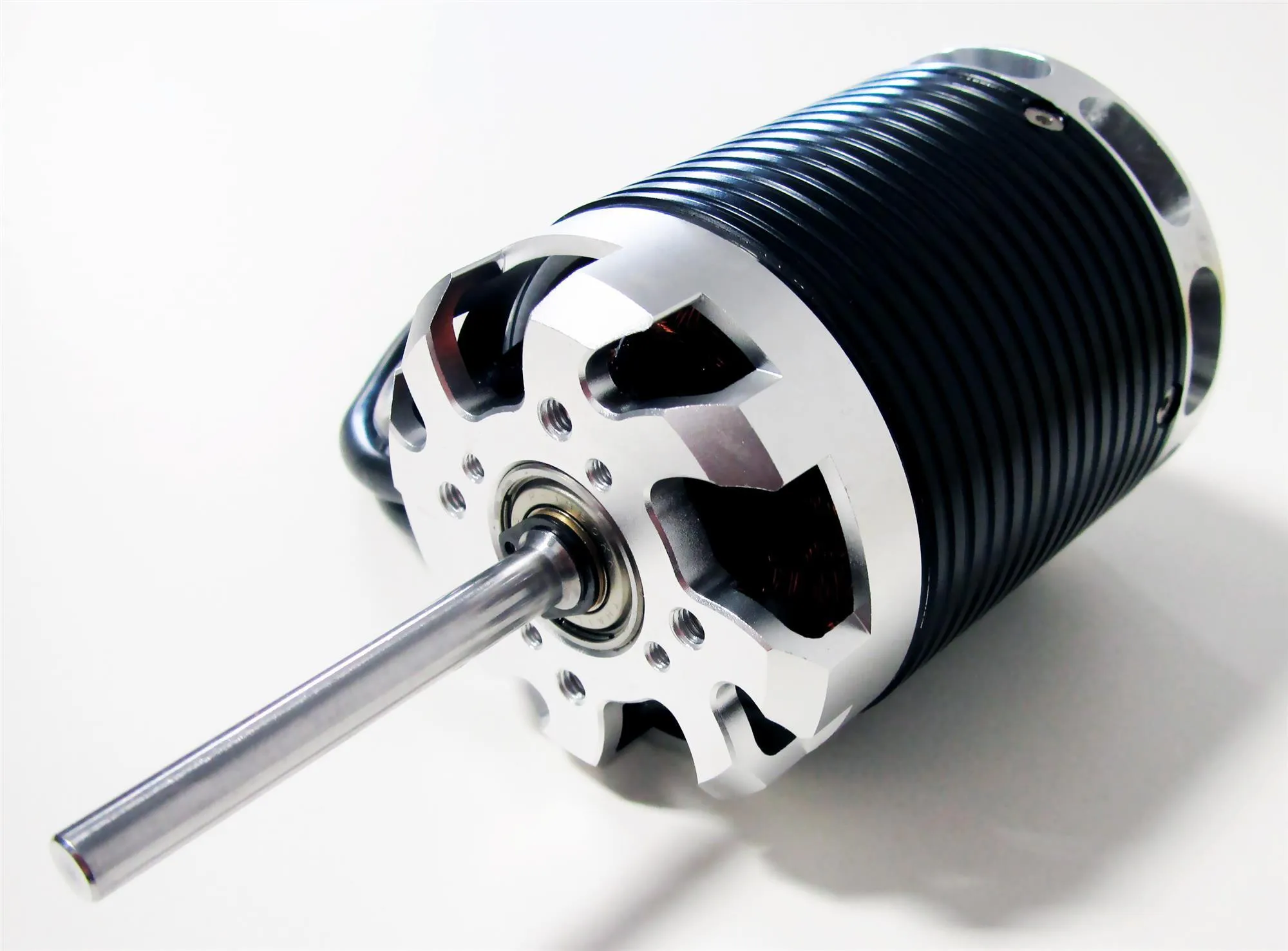

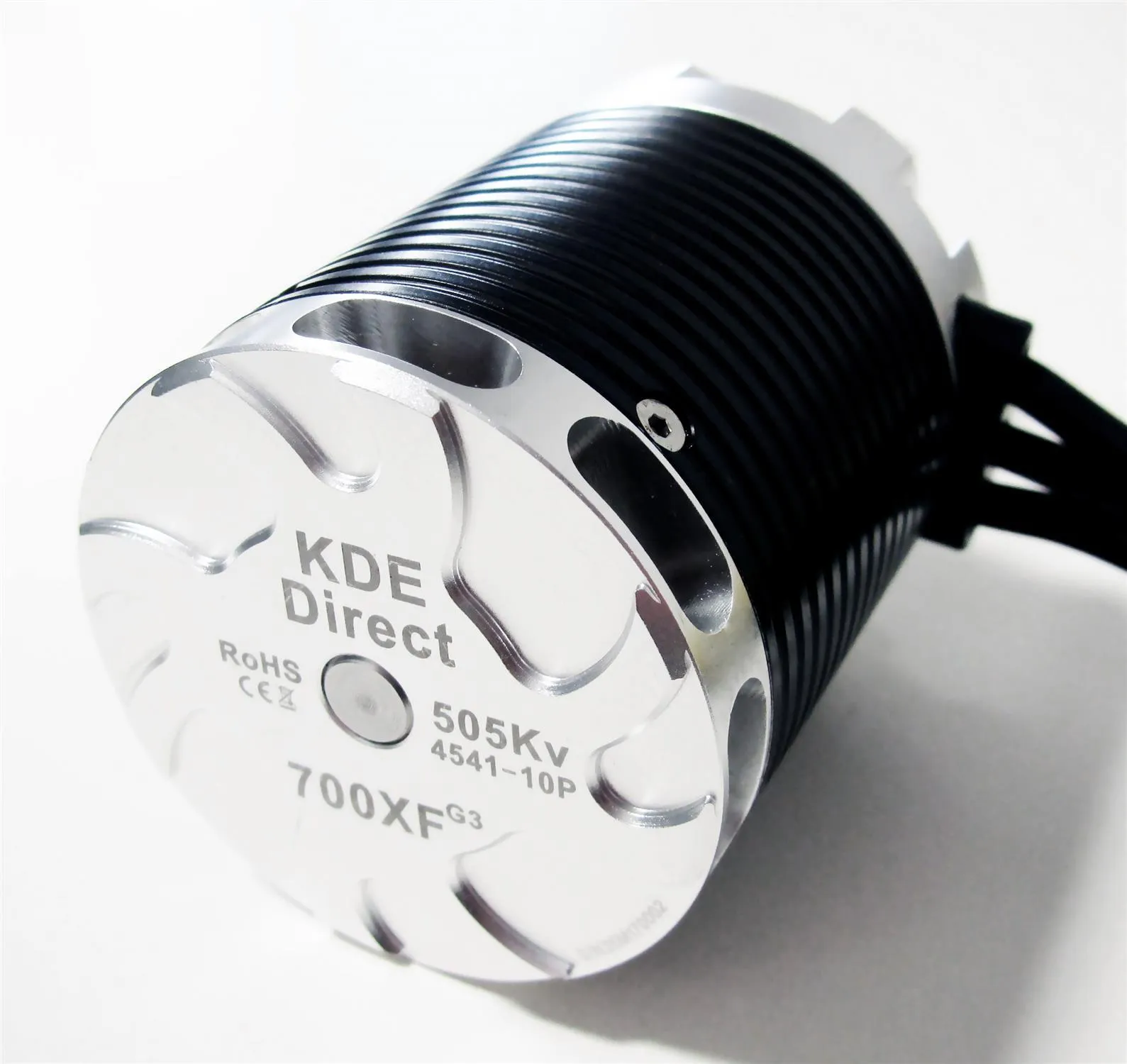

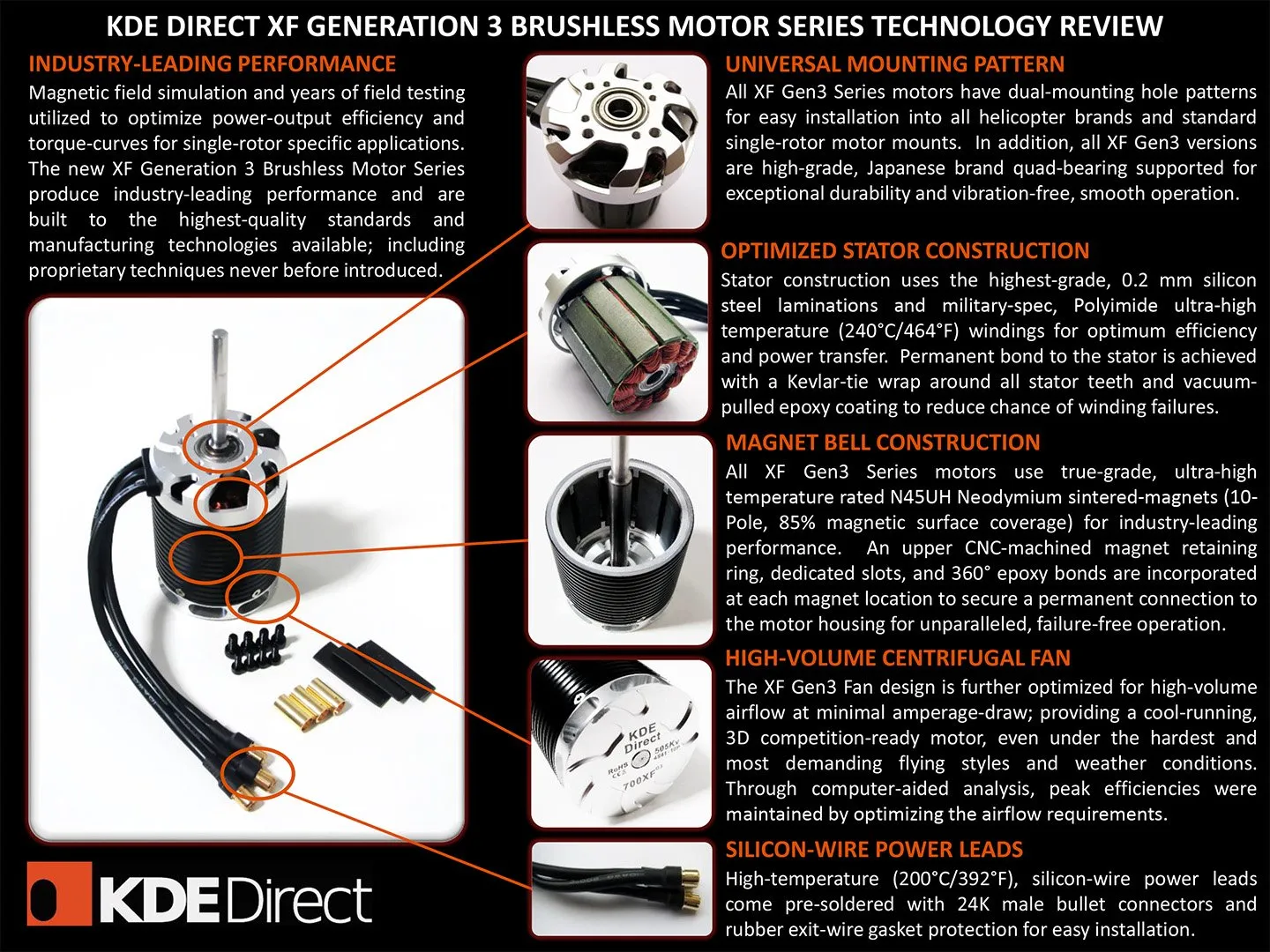

The new KDE Direct 700XF-505-G3 High-Performance Brushless Motor is an extremely efficient and powerful motor for any 700 through 800-class single-rotor helicopter or fixed-wing application. Using the latest Computer-Aided Magnetic Field Analysis software to design the most efficient and optimized design for high-level, performance-driven flight applications and the highest-quality materials and processes in manufacturing; the new "G3" series is the new generation in performance for the single-rotor and UAS marketplace. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) quad-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.

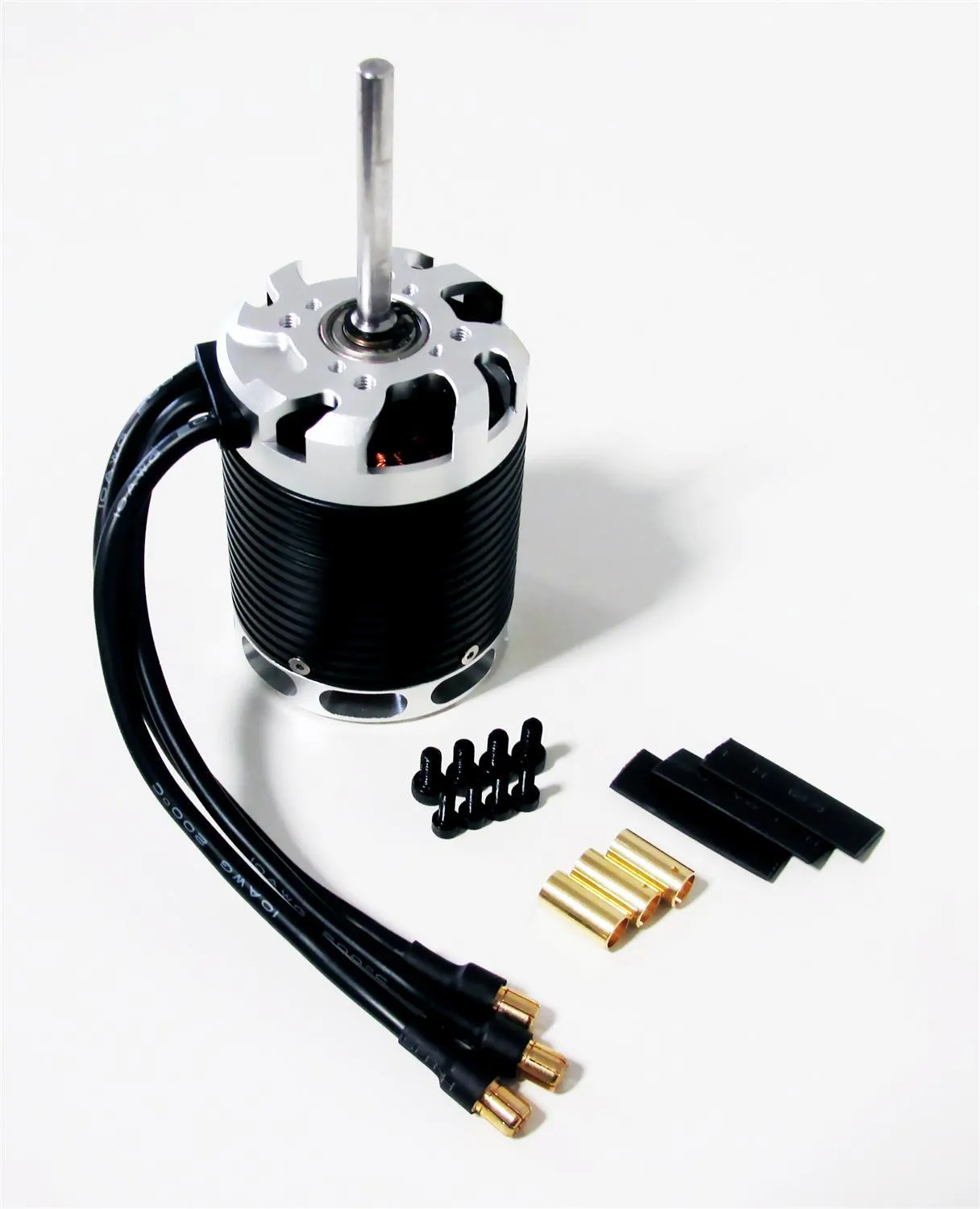

Motors include 200°C, 10 AWG silicone-wire leads and ф6.5mm 24K Bullet Connectors (, pre-soldered to the motor leads and ESC matching Bullet Connectors).
