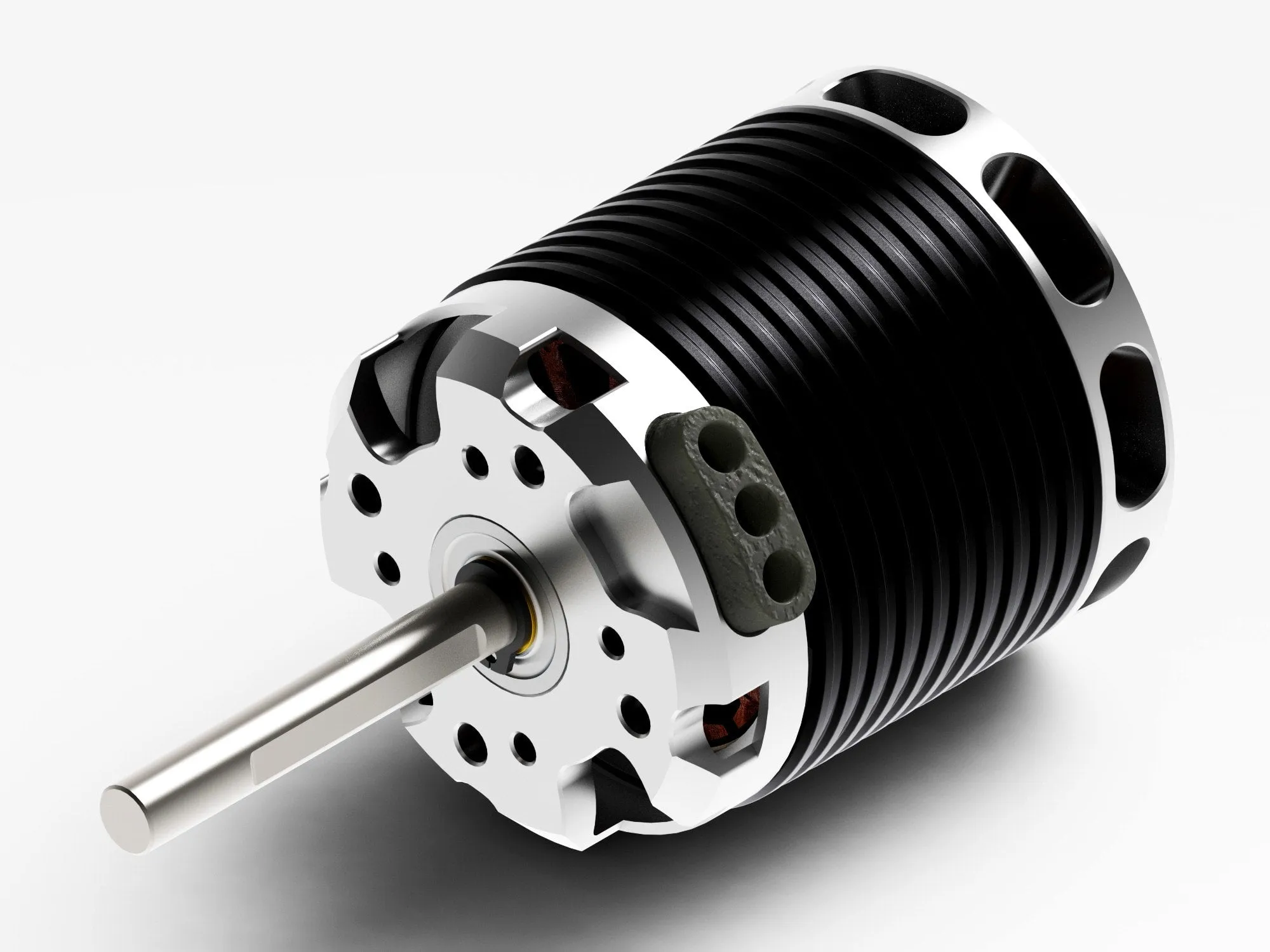

KDE550XF-1200-G3 Brushless Motor for 500/550/600-Class Electric Single-Rotor Series
KDE550XF-1200-G3 Brushless Motor for 500/550/600-Class Electric Single-Rotor Series
  • 6mmXLEdition
  • Standard
  • 6mmEdition
  • G500

$ 52.90

$ 40.69

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

Product is NOT STOCKED at fulfilment center. Minimum order quantity of 50 required. 8 week lead time. Contact sales for details.

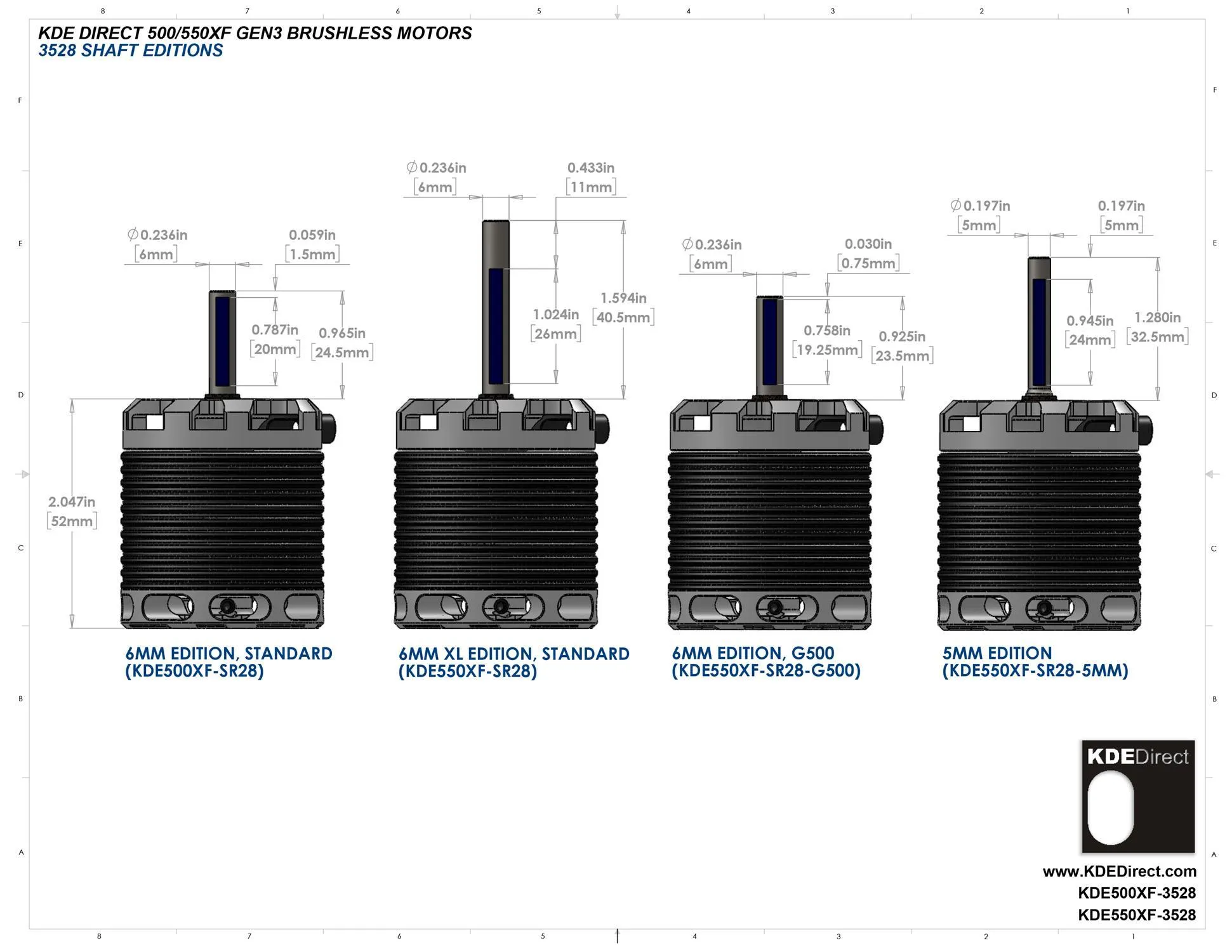

NOTE: Use the pull-down menu above to select the shaft of your choice:

  • 6mm XL Edition, Standard ()
    • ф6mm shaft diameter, 40.5mm shaft extension, 92.5mm overall length
    • 6mm Edition, G500 ()
      • ф6mm shaft diameter, 23.5mm shaft extension, 75.5mm overall length
    • 5mm Edition ()
      • ф5mm shaft diameter, 32.5mm shaft extension, 84.5mm overall length

    Replacement Bearings:

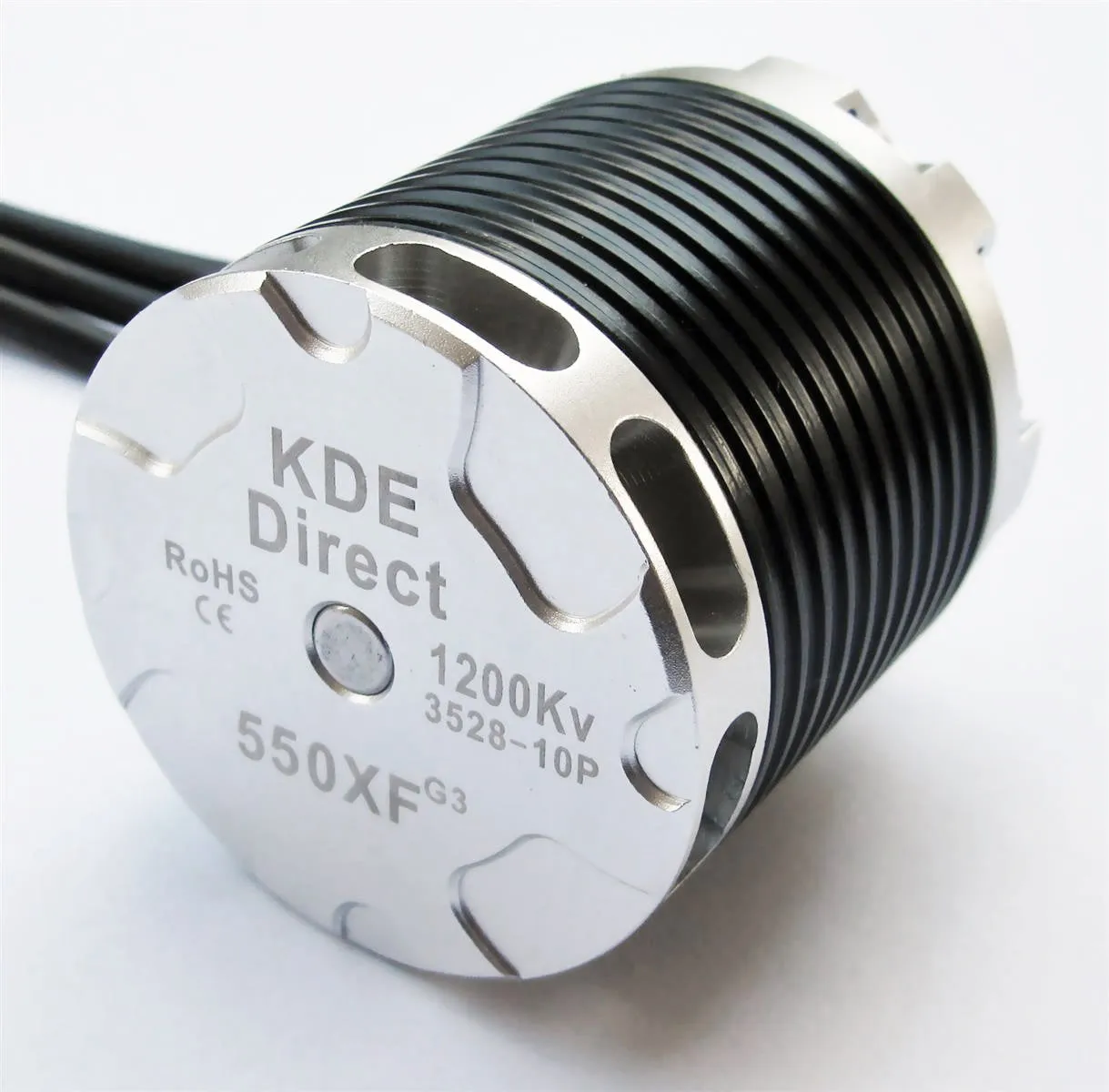

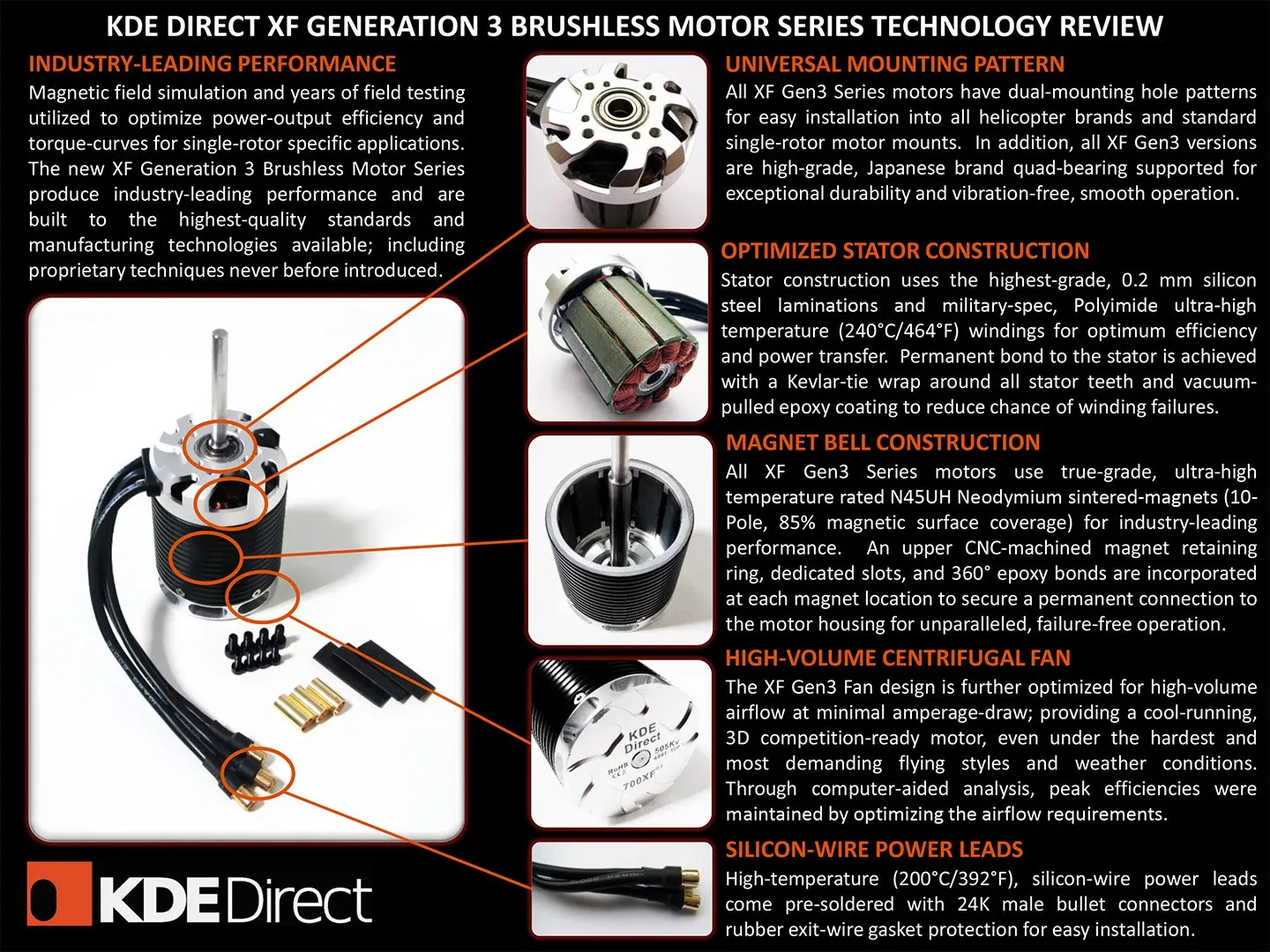

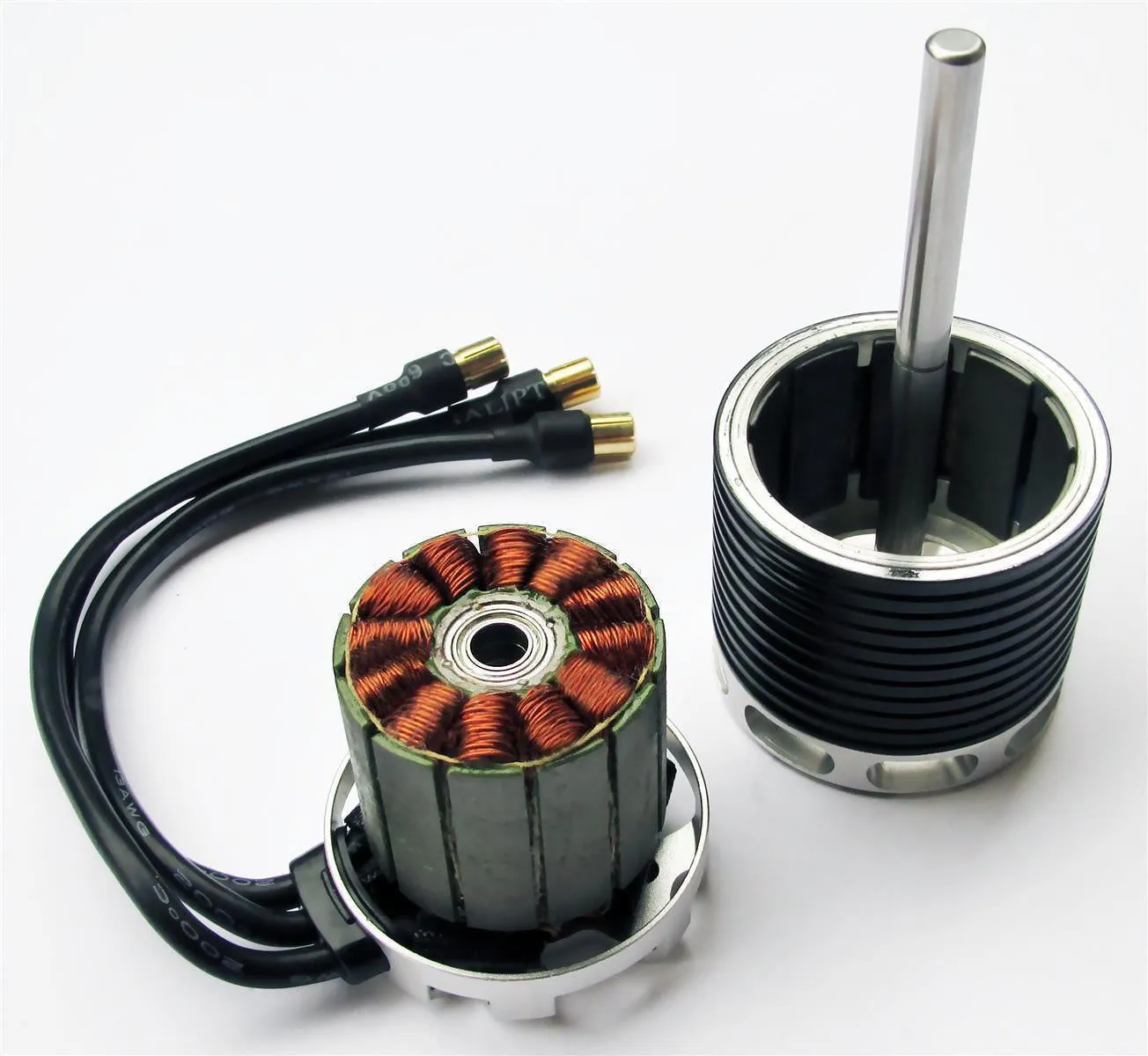

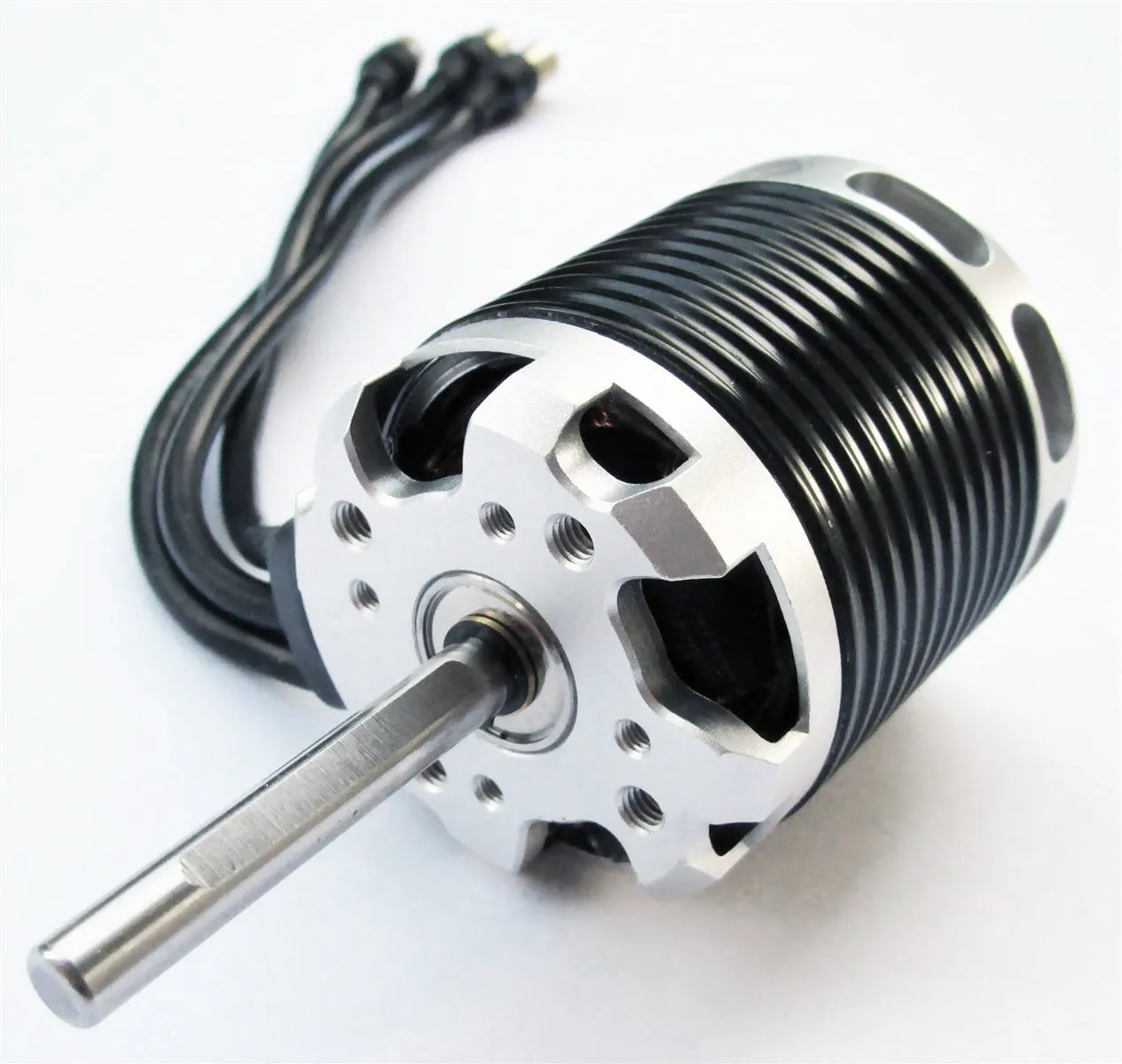

    The new KDE Direct 550XF-1200-G3 High-Performance Brushless Motor is an extremely efficient and powerful motor for any 500 through 600-class single-rotor helicopter or fixed-wing application. Using the latest Computer-Aided Magnetic Field Analysis software to design the most efficient and optimized design for high-level, performance-driven flight applications and the highest-quality materials and processes in manufacturing; the new "G3" series is the new generation in performance for the single-rotor and UAS marketplace. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) quad-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.

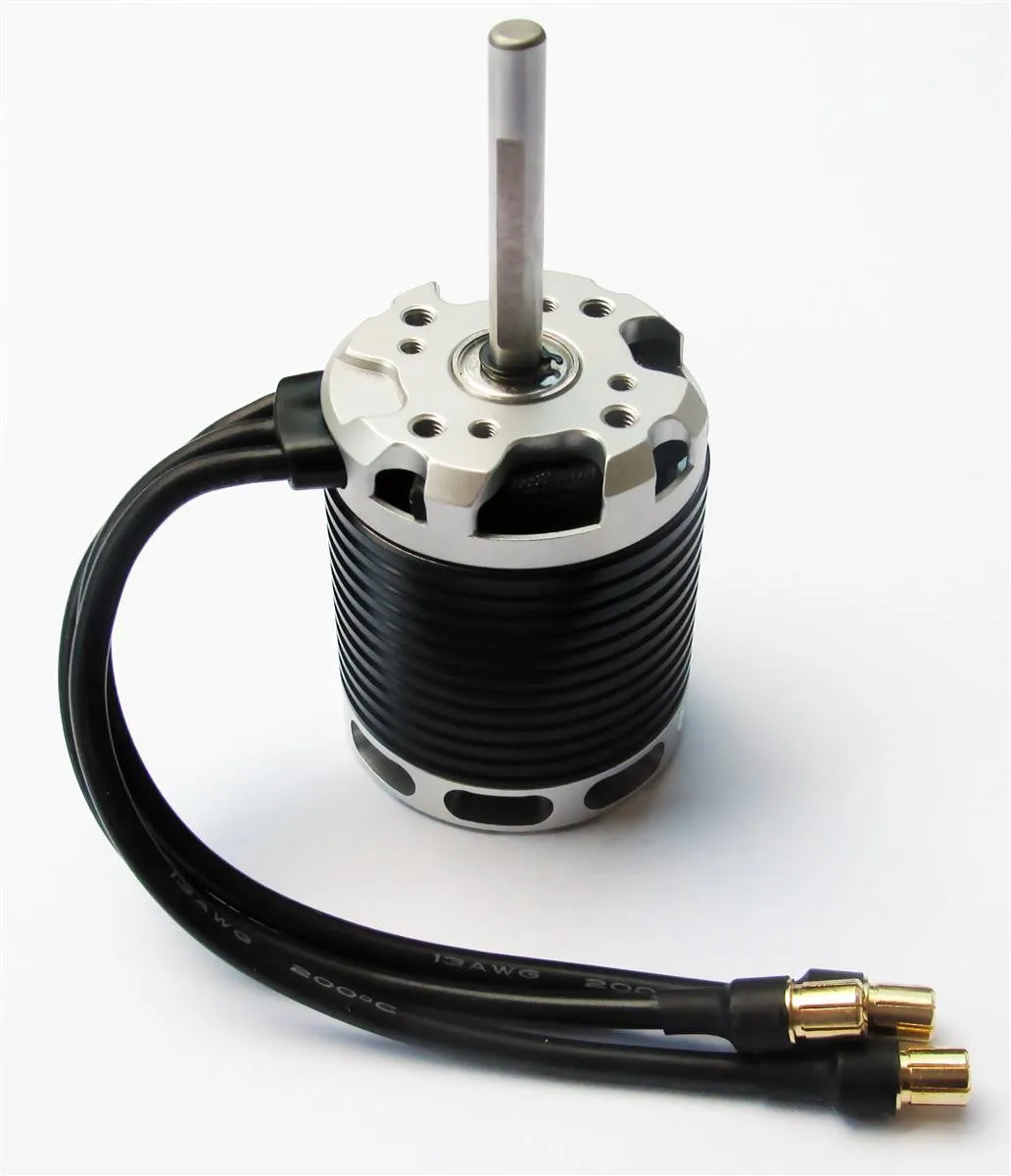

    Motors include 200°C, 13 AWG silicone-wire leads and ф6.5mm 24K Bullet Connectors (pre-soldered to the motor leads and ESC matching Bullet Connectors).
